HVF5000TA/R

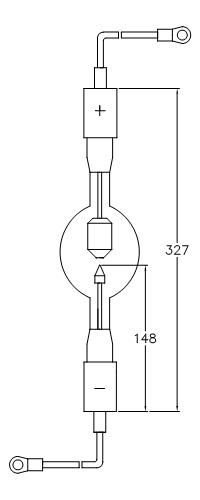

ASL HVF5000TA/R - mercury short-arc lamp.

Warranty/Life

Technical specification

Power (W) - 5000
Rated Current (A.D.C.) - 93
Voltage (V.D.C.) - 54
Current Control Range (A.D.C.) - 86-100
Average Lumen Output (Lm) - 0
Burning Position - V±5°
Forced Air Cooling (m/sec.) - forced base cooling
Anode (+) Base Ø - Pin Ø or Thread (mm) - 33.5-16
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 33.5-16

Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
